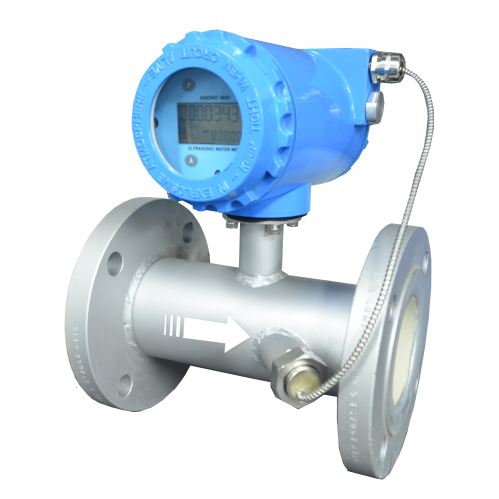

Asionic 100 - Two Wire Inline Ultrasonic Flow Meter

Electronet series ASIONIC - 100 are micro-controller based 2 wire full bore type ultrasonic flow transmitters specially used for various industrial applications. These flow transmitters accurately measure the flow rate of conductive/ non conductive liquids in closed pipes. Due to its simple and rigid design, the flow transmitter is an obstruction-less and maintenance-free instrument in place of conventional mechanical flow measuring device. The use of 'Transit Time' technology offers highest ability and better measuring accuracy in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow.

Specification

• Display: Digital
• Brand: ELECTRONET
• Model: ASIONIC 100
• Response Time: Less than 10 Sec.
• Mounting: In-Line Horizontal / Vertical
• Power Supply: 24 V DC
• Process Connections: ANSI 150 Flanged (As per table B 16.5) (Other On Requirement)
