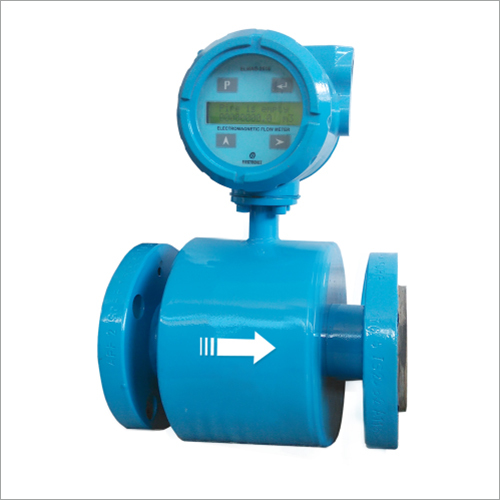

Elmag Tx - 22 - Two Wire Electromagnetic Flow Meter

Electronet series ELMAG-TX22 are micro-controller based 2 wire full bore type electromagnetic flow transmitters specially used for various industrial applications. These flow transmitters accurately measure the flow rate of conductive liquids and slurries in closed pipes. Due to its simple and rigid design, the flow transmitter is an obstruction-less and maintenance-free instrument in place of conventional mechanical flow measuring device. The use of 'Pulsed DC' technology offers highest ability and better measuring accuracy in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow, The instrument is based on Faraday's law of electromagnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity and corresponding electrical output is provided with respect to ensuring voltage.

Specification

• Model: ELMAG TX-22
• Display: Digital
• Accuracy: +/- 1% of M.V. (For Flow Velocity less than 0.5 m/s)
• Media: Liquids (Conductive)
• Viscosity: 200 cp max
• Flow Velocity Range: 0 m/s to + 6 m/s
